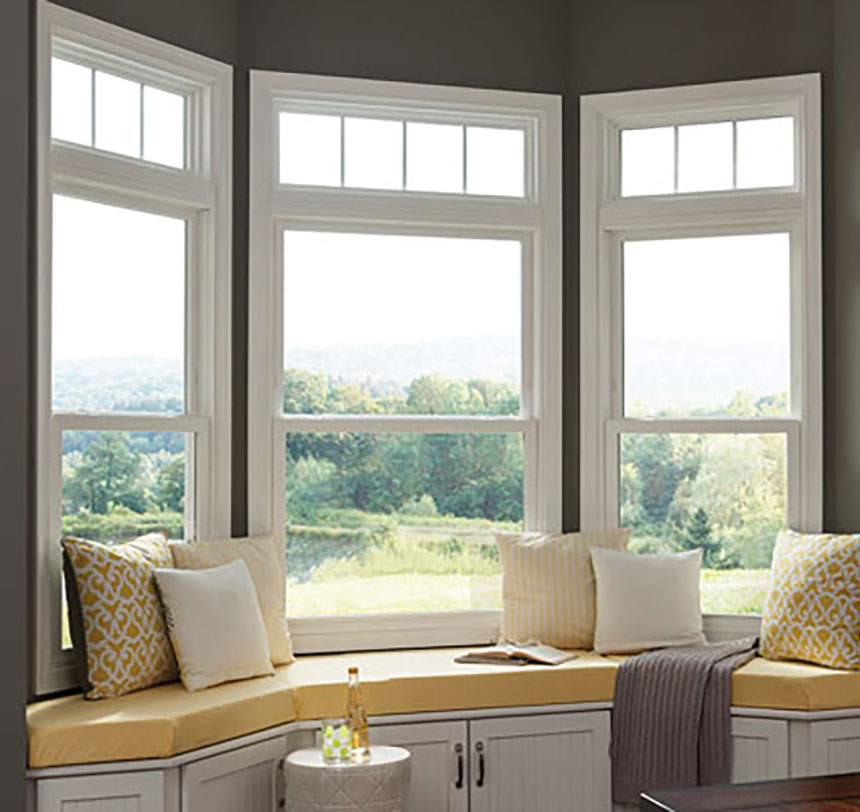

Impact Resistant Single Hung
Description
• Impact resistant single hung windows
• Frame profile is 2 7/8”
• Design for residential, midrise and highrise applications
• Design loads +80 / -140 PSF
• Infinite height with intermediate anchor 150”
Frame
• White, Bronze, Clear Anodized and Kynar finish
• Woodgrain colors available
Glass
• 5/16
• 7/16
• laminated and insulated
• Low-e coatings
Features
• Maximum size 53 1/8” x 96”
• Equal lites
• Proview
Benefits
• No screws at the bottom up to +/- 80 PSF
• Friendly installation

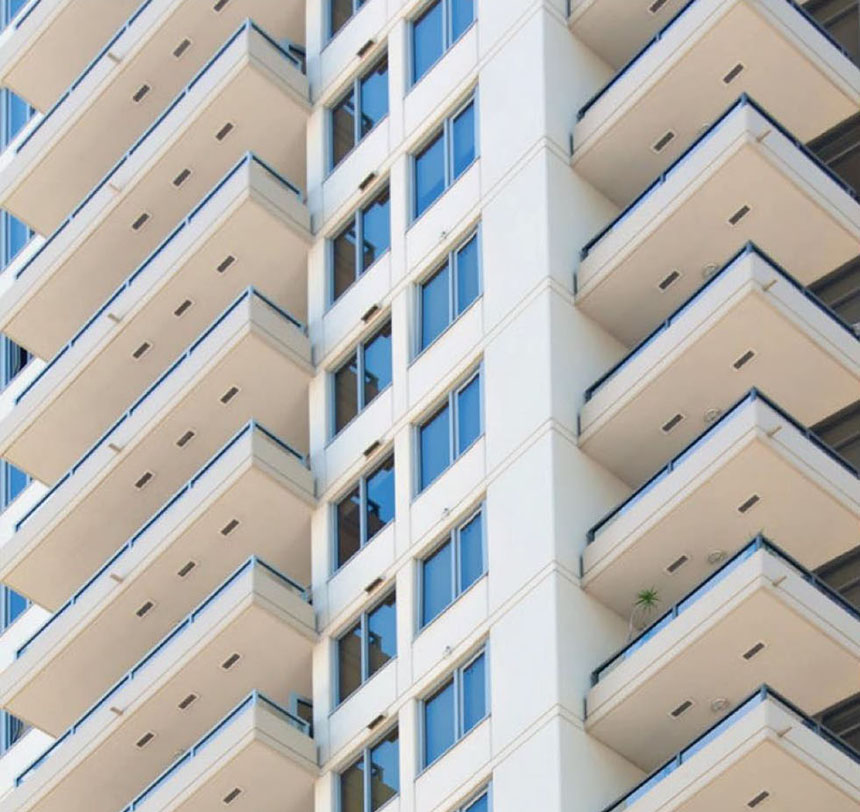

Impact Resistant Horizontal Slider
Description
• Over-sided horizontal slider window
• Configuration XO/OX – 74” x 74” and 96” x 63”
• Unequal panels XO/OX – 89 3/4” x 74”
• 3 panels XOX – 127 5/8” x 74”
• Design loads +90 / -140 PSF
Frame
• White, Bronze, Clear anodized and Kynar finish
Glass
• 5/16
• 7/16
• laminated and insulated
• Low-e coatings
Benefits
• Tested with different glass compositions to accomodate residential, mid and high-rise projects

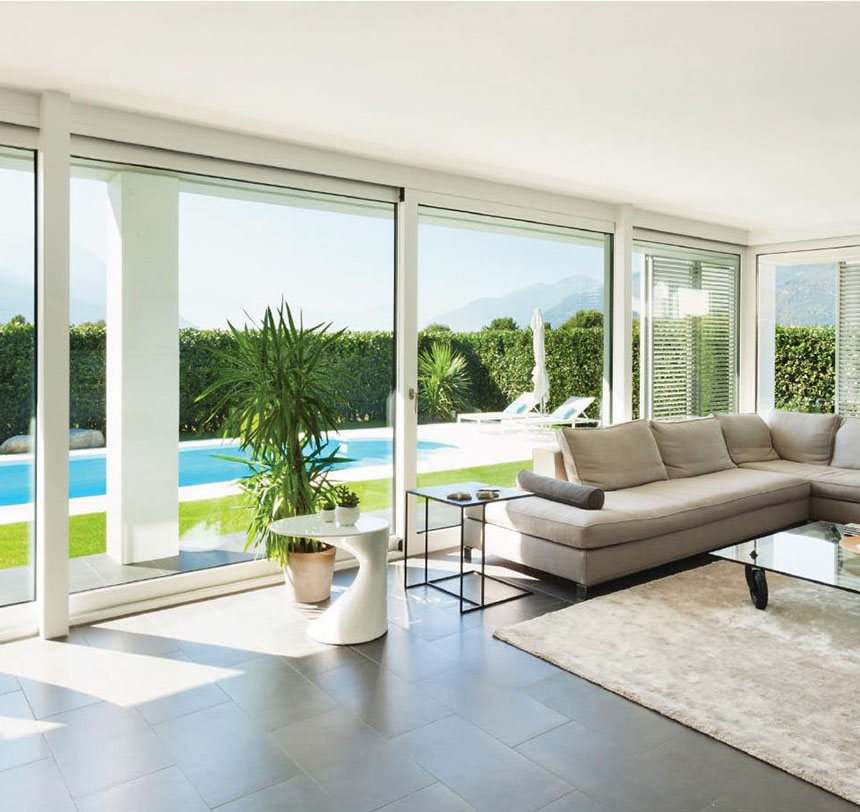

Impact Resistant Sliding Glass Doors
Description
• Aluminium profile is 2 5/8” x 5 5/8” two track, door panel profile is 2 1/4” x 4”
• Stainless steel assembly screws to avoid future corrosion
• Design loads +120 / -100 PSF large and small missle
• Door panel use wet glazing applied thru a computerized glazing machine to avoid water leaks
• Maximum size is 192” x 120”
• Configurations XO – OX – XX – XOX – OXO – OXXO
Frame
Glass
• 9/16” laminated or 1 3/16” insulated laminated
• Low-e coatings
Features
• 45° corner assembly
• Low sill raiser 2 5/8” up to + 120 PSF
• Anchor less jamb option up to 108”
Benefits
• Designed for high-rise buildings
• Anchor are not visible, allowing for modern improving aesthetics

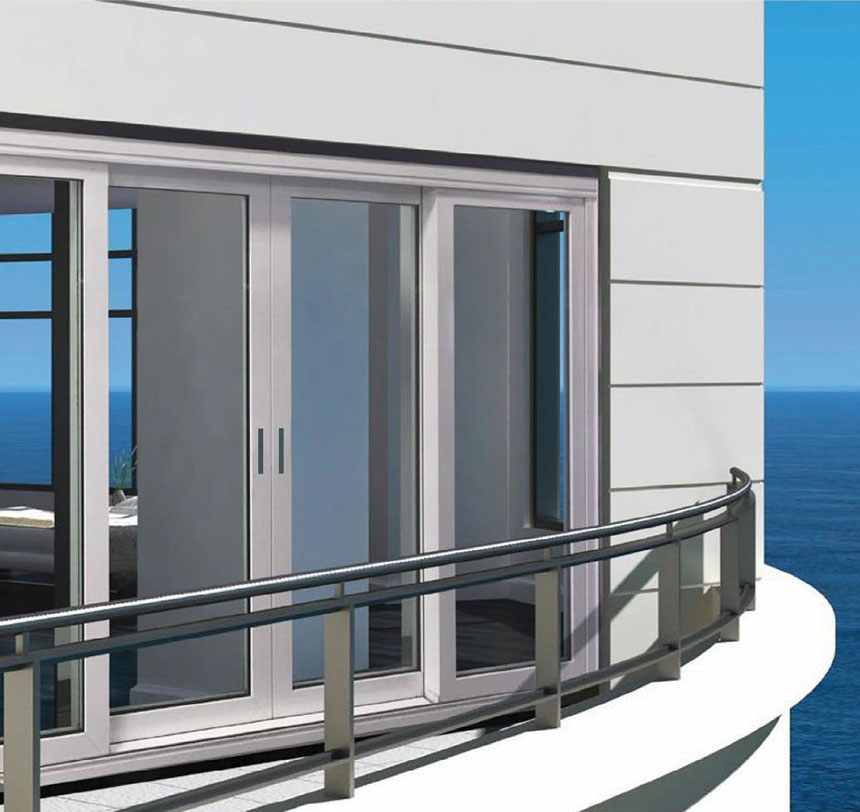

Multitrack Sliding Glass Door
Description
• Impact resistance (LMI & SMI) up to 6 panels on 3 tracks
• With or without screens
• Design loads DP=+/- 100 PSF
• Frame depth 5 1/4”
• Anchor-less jambs
• Maximum dimensions: 288” x 120” or 360” x 96” (FW x FH)
Glass Type
• 9/16” laminated w/ 0.09 PVB/SGP
• 1 5/16” glass insulated laminated
• High performance low-e coatings
Finishes
• Bronze, White, Silver, Kynar and Wood-like finishes
Features
• Very robust door with anchor-less jambs
• Panels made of one extrusion mitered cut
• PMO (acetal) wheels on stainless steel housing and bearings tested to 25000 cycles
• 2 5/8” sill height without riser up to +75 / -100 PSF
• Hidden drainages for enhanced appearance
• Reinforced astragal above 9′-0”
• Optional raised grid for design freedom

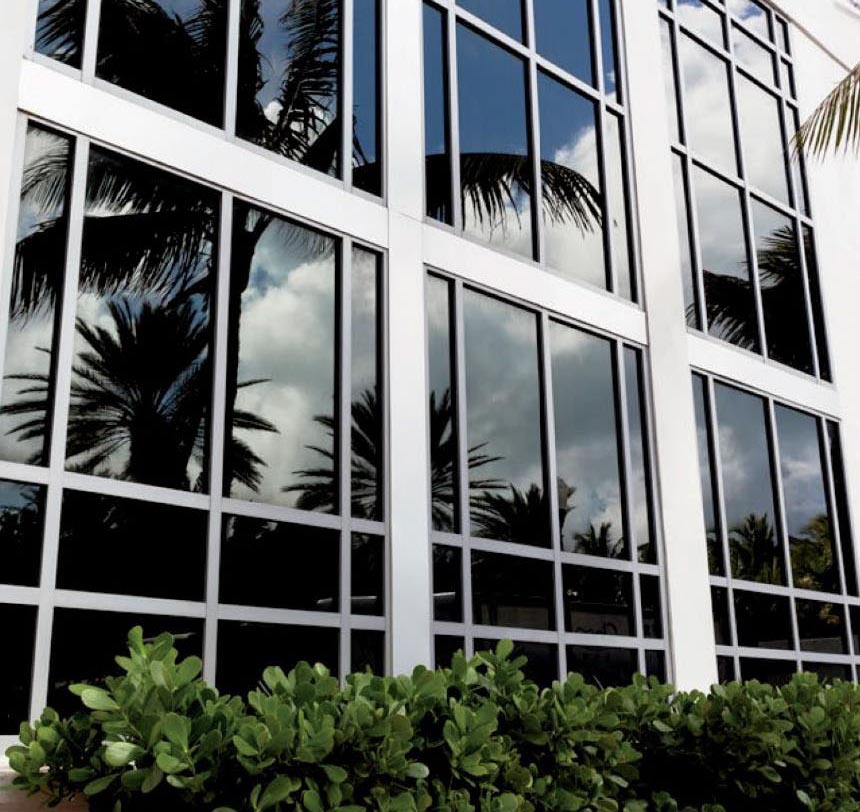

IMPACT RESISTANT CURTAIN WALL SYSTEM
Description
• Aluminium profile is 2 1/2” x 7 1/4”
• Stainless steel assembly screws to avoid future corrosion
• Anchoring clips only top and bottom
• Design loads +/- 100 PSF large and small missile
• Infinite height with intermediate anchor 150”
Frame
• Clear anodized, bronze and white available
• Custom finish on request
Glass
• 9/16” laminated and 1-5/16” insulated laminated, SGP interlayer
• Low-e coatings
Features
• Shear block construction
• Butt joined glass at mullion or pressure plate

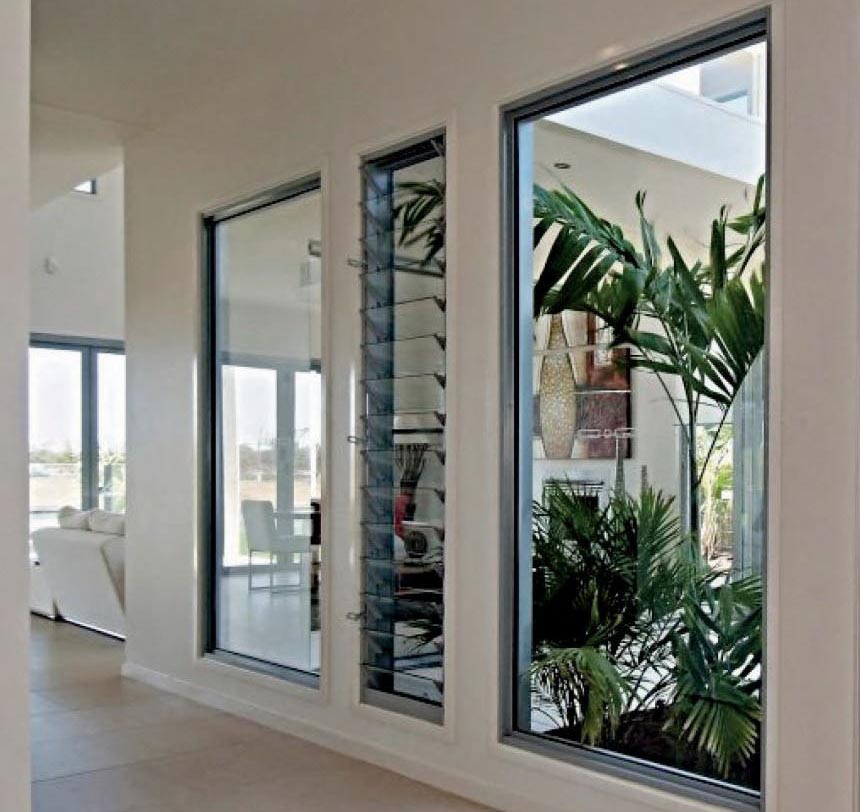

FIXED (PICTURE WINDOW)
Description
• Impact resistance (LMI & SMI)
• Design loads DP=+/- 100 PSF
• Frame depth 2 15/16”
• Architectural shapes available
Glass Type
• 7/16” laminated w/ 0.09 PVB/SGP
• 1-3/16” glass insulated laminated
• High performance low-e coatings
• PVB or SGP as interlayer
Standard Finishes
• Bronze, White, Silver
Custom Finishes
• Kynar finish
• Wood-like finishes
Features
• Slim design that matches with the single hung and horizontal sliding window
• Flush adaptor for flush installation into concrete
• Flange design for wood buck installation
• Hidden anchors
• Extensive shapes or archs and figures
• Possible to match infinite picture windows through aluminium mullion

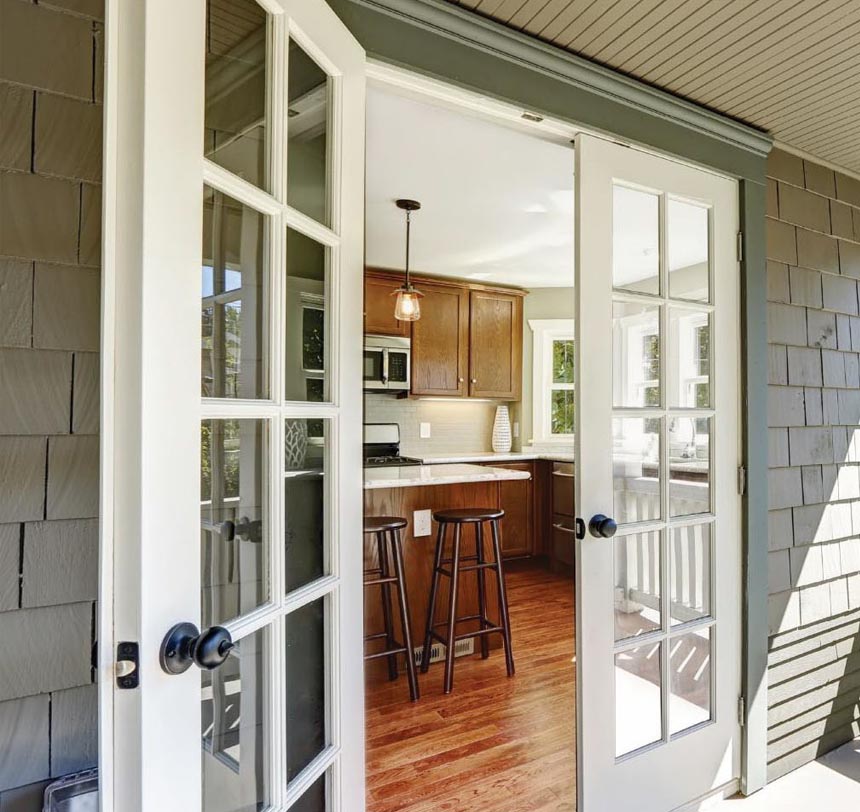

FRENCH DOOR
Description
• Impact resistance (LMI) single and double door with or without sidelites
• Available configurations: X, XX, OX, OXO, OXXO
• Design loads DP=+/- 80 PSF
• Frame depth 4”
• Maximum dimensions: 156” x 98” (FW x FH)
Glass Type
• 7/16” laminated w/ 0.09 PVB
• 15/16” glass insulated laminated
• High performance low-e coatings
Standard Finishes
• Bronze, White, Silver
Custom Finishes
• Kynar finish
• Wood-like finishes
Features
• Concealed 2 and 3 point lock system
• Can be prepped for industry standard hardware
• 4 hinges per panel for added strength
• Multiple glass lites per panel door (intermediate horizontals) that allow combinations of privacy glass and clear or tinted glass
